起重钳系列|辰力吊索具
LIFTING CLAMPS SERIES|CHENLI RIGGING

HPC系列横吊钢板起重钳

HPC HORIZONTAL PLATE CLAMP

HPC系列横吊钢板起重钳用途:适用于钢板,水平吊运。

采用优 质低碳合金钢制造。吊运过程中不得碰撞被吊物。

额定载荷是指吊钳成对使用、吊点夹具为60度时允许起吊的重量,吊装作业中两只或4只配套成组使用。

产品详情

Application: Suitable for steel plates, horizontal lifting.

Made of high-quality low-carbon alloy steel.

Do not collide with the objects being lifted during lifting.

The working load limit is the maximum load that the clampare authorized to support when used in pairs with a liftangle of 60° in lifting operations the clamps can be used inpairs or multiples.

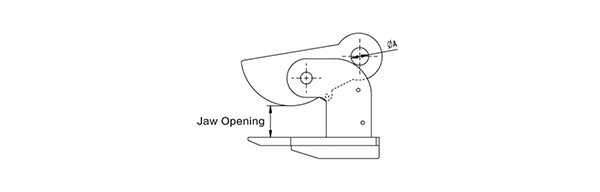

HPC系列横吊钢板起重钳结构图


产品介绍

额定载荷:1.5-8吨

Working load limit(WLL) 1.5-8T

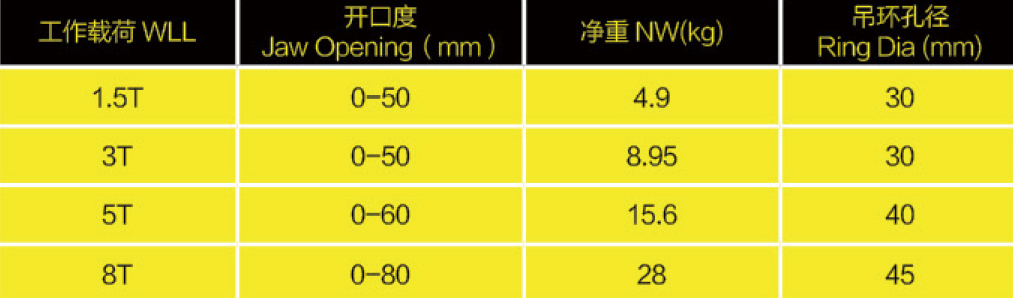

HPC系列横吊钢板参数表
