起重钳系列|辰力吊索具
LIFTING CLAMPS SERIES|CHENLI RIGGING

XYT-X吊环/手抬石材夹具

XYT-XHANGING RING STONE FIXTURE

XYT-X吊环/手抬石材夹具用途:

适用于大理石、板石的吊运。

聚氨酯橡胶纹理设计、不伤石材、不脱落。

采用优质低碳合金钢制造。

主要部位合金钢而成并经过热处理,保证产品具有高 强度和耐久性。

小型轻便、操 作简单。

产品详情

Usage:suitable for marble and slate hoistng.

Polurethane rubber texture design,does not hurt thestone,does not fall off.

Made of high quality low carbon alloy steel.

The main parts are made of alloy steel and heat treated toensure high strength and durability.

Small and light,easy to operate.

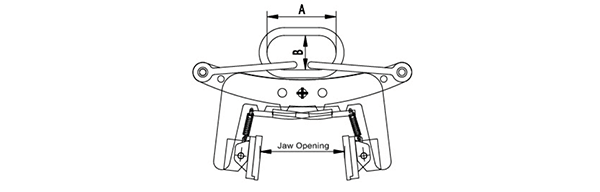

XYT-X吊环、手抬石材夹具结构图

产品介绍

额定载荷:280-350kg

Working load limit(WLL)280-350kg

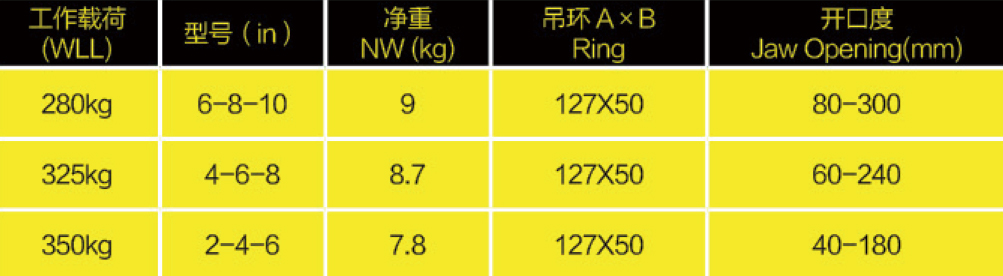

XYT-X吊环、手抬石材夹具参数表
