PPD系列横吊钢板起重钳
用途：适用于钢板，水平吊运。
采用优质低碳合金钢制造。
吊运过程中不得碰撞被吊物。
额定载荷是指吊钳成对使用、吊点夹具为60度时允许起吊的重量，吊装作业中两只或4只配套成组使用。
起重钳系列|辰力吊索具
LIFTING CLAMPS SERIES|CHENLI RIGGING
PPD系列横吊钢板起重钳
产品详情
Suitable for lifting and transport of steel plates, construction and profiled bar in horizontal position.
Manufactured from high quality carbon steel.
Avoid snatch or shock loading.
The working load limit is the maximum load that the clamp
are authorized to support when used in pairs with a lift angle of 60°In lifting operations the clamps can be used in pairs or multiples.
产品介绍

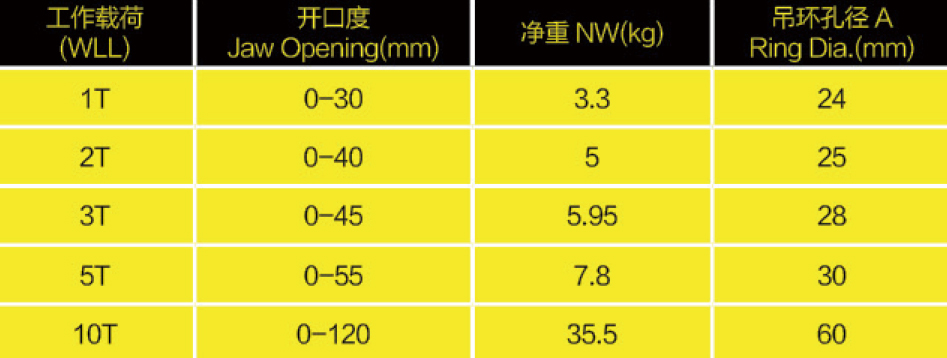

额定载荷：1-10吨
Working load limit(WLL)1-10T
